Test Tube Racks

60-5 / 3mL

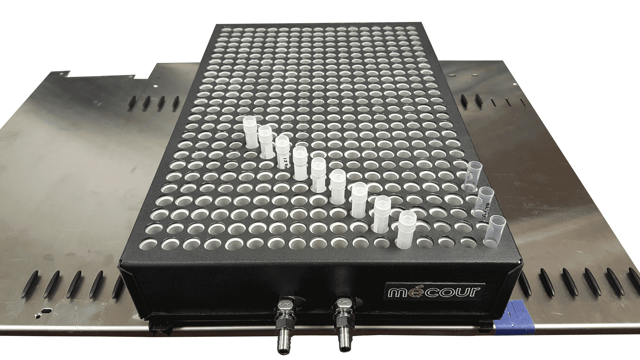

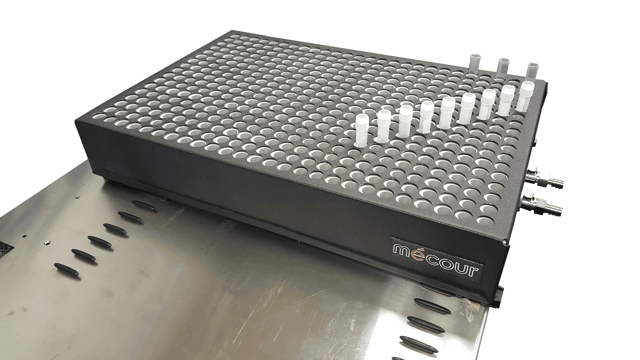

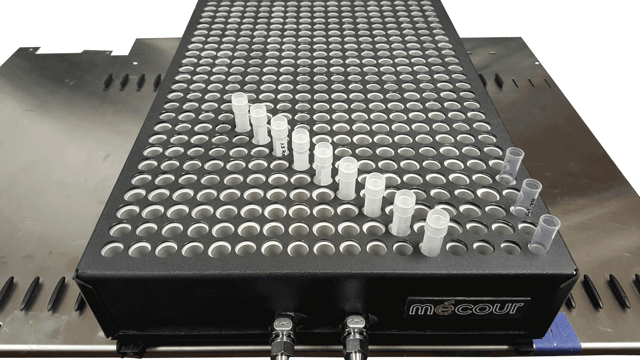

Design specific request from customer to increase and maximize their throughput workflow on a Hamilton STAR deck for uniform and stable control of 444 tubes at 4°C. Unit perfectly slides on/off STAR deck, and with easy fluid quick disconnect fittings. You don’t have to touch the chiller circulator at all when removing thermal block. Thermal tube rack is comprised of 1 row of 5mL tubes (24) and 15 rows containing the 3mL tubes, for a total of 420 tubes. Total tube capacity is 444 tubes.
